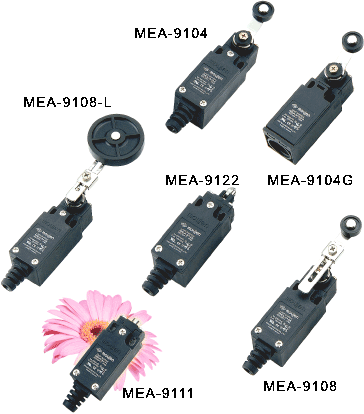

  輕小型限制開關   (Made in Taiwan)
功能 :
塑膠外殼重量輕
可配合各種不同之連桿及頭
接線頭具帽式覆蓋螺絲
可調式
防塵,防油,防水
雙迴路1N.O.,1,.N.C.設計
適用溫度: +5 to +160 . (-15 to +70).

額定 :

6A 125 OR 250V AC
0.4A 125 V DC

電氣迴路 :

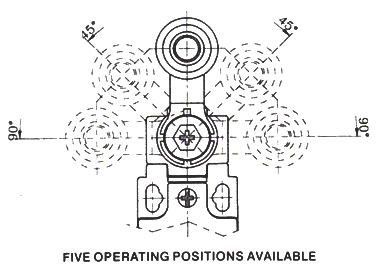

FIELD ADJUSTABLE :
  Rotary motion roller lever and rod actuators are adjustable through 360X. They may be set for operation clockwise, counter-clockwise, or in both directions. Operating heads may be positioned in any of four 90X and four 45X positions.

EASY WIRING :
1. Loosen cover screws and remove cover.
2. Remove rubber strain relief from switch cover.
3. Slip strain relief over cable.
4. Fasten terminal screws tightly after inserting cables or terminals.
5. After wiring, insert strain refief into the groove of the switch cover.
6. Fasten 3 cover screws evenly. Do not over tighten.
7. Recommended Cable-# 18/2 SJT Flexible.
